AK Linear Module

Product Features

1. Profile widths cover 120mm/170mm/190mm;

2. Compatible with different grating scales, precision can range from ±2μm to ±5μm;

3. Maximum load capacity of 135kg, with a maximum speed of up to 4m/s;

4. One-stop selection, free to combine guide rails, grating scales, motors, cable chains, covers, etc.



Application Fields

Suitable for point-to-point precision linear motion, such as precision laser cutting, 3C precision assembly, lithium battery precision processing, and other fields.

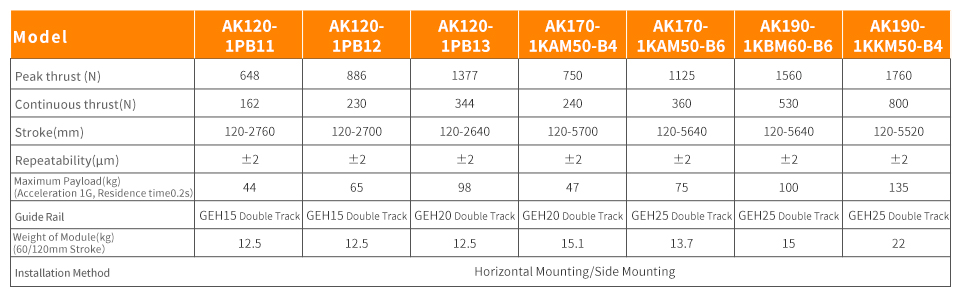

Performance Parameters
